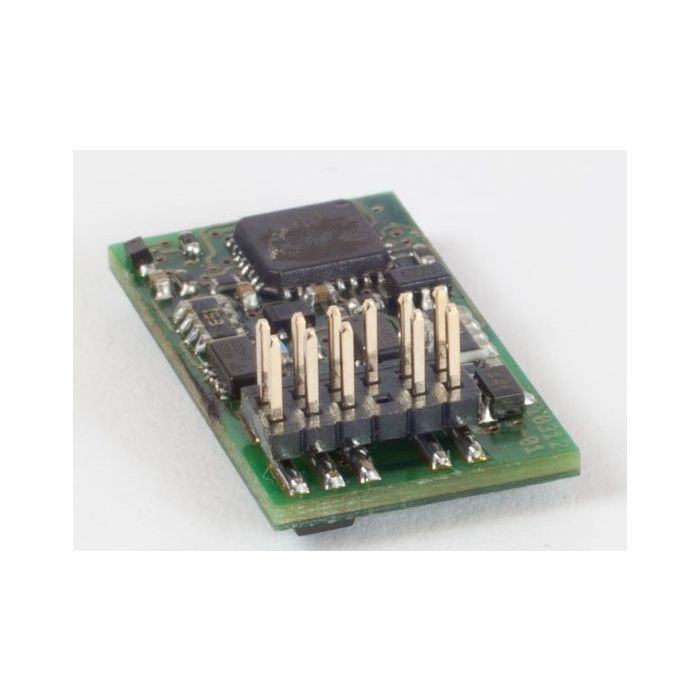

10312 Lenz Silver PluX12 0.75A NEM653 Plug with 4 Function

10312 Lenz Silver PluX12 0.75/1.0A NEM653 Plug with 4 Function outputs.

The Digital Plus Silver  locomotive decoder is suitable for all DC locomotives with continuous current draw of 0.75Amp or less.

• Super smooth and silent high frequency back emf motor control
• Supports  Automatic Braking Control (ABC)
• Shunting speed on F3
• Suitable for operation with 14/27 or 28/128 speed steps
• Operation on conventional DC layouts is posible or may be disabled
• Motor output = 0.75A continuous 1.0A max
• Motor and function outputs have short circuit protection
• Four function outputs rated at 500mA each with advanced function mapping
• Directional or independent lighting with dimming and special effects
• Support for Multiple traction and long addresses (Loco addresses up to 9,999)
• Support for programming on the mainline (Programming on Main POM)
• Support for all forms of programming as described in NMRA RP-9.2.3
• RailCom
• SUSI solder points
• Size: L 20 x W 11 x H 3.9mm
